Thông số kỹ thuật

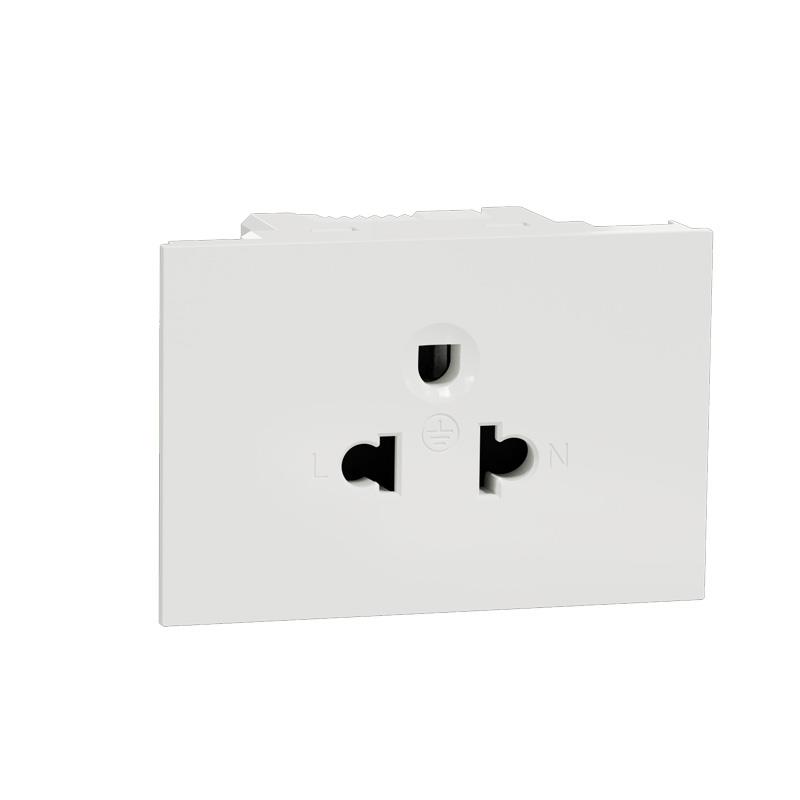

Socket-outlet, Avataron A, Universal, 16A, 250V, 3 Pin, 2S sized, White
| range of product | AvatarOn A |
| product or component type | Socket-outlet |
| device presentation | Complete product |
| colour tint | White |
| outlet poles configuration | 2P + E |
| rated current | 16 A at 250 V AC 50…60 Hz |
| socket number | 1 |
| clamping connection capacity | 2 x 1.5…2 x 4 mm² for solid cable(s) 2 x 1.5…2 x 4 mm² for stranded cable(s) |
| connections – terminals | Screwless terminals |
| material | Polycarbonate cover Polycarbonate base |
| device mounting | Flush |
| width | 46.6 mm |
| height | 69.3 mm |
| depth | 36.35 mm |
| embedding depth | 24.85 mm |
| IP degree of protection | IP20 |
| maximum ambient air temperature for operation | 35 °C |
| ambient air temperature for storage | -5…45 °C |
| relative humidity | 0…95 % |
| operating altitude | < 2000 m |
| standards | IEC 60884-1 |
| product certifications | IEC |
Ổ cắm đơn 3 chấu 16A, size 2S cắm nhanh
